Power Antenna

Mike Stefanakis — Posted on The Triumph Experience
Tuesday February 26, 2019 9:08 AM

Power antenna was easy to incorporate while the body was stripped down. Photos tell the story.

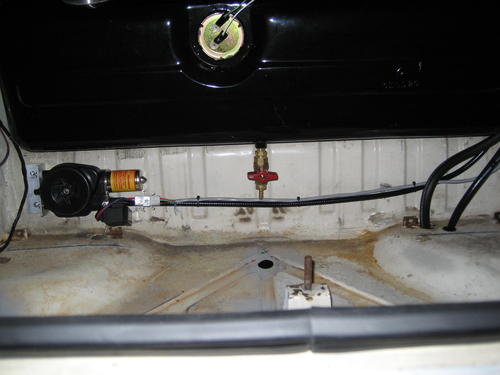

IMG 0691

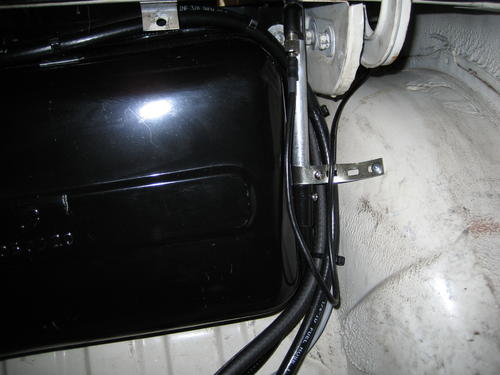

IMG 0658

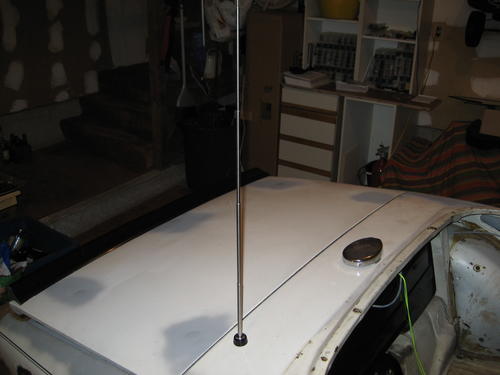

IMG 0666

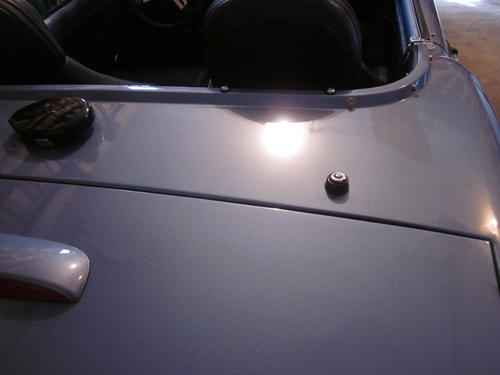

IMG 4496

Member Comments on Journal Entry: Power Antenna ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Fuel Pump / Fuel Tank Modification

Mike Stefanakis — Posted on The Triumph Experience
Wednesday January 30, 2019 11:46 AM

Once I was satisfied with the conversion I installed the pump into a new fuel thank. In hindsight I think if I were to do it again I would install an external pump.

Fuel Pump Installed

Fuel Tank and Pump

Member Comments on Journal Entry: Fuel Pump / Fuel Tank Modification ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Fuel Pump / Fuel Tank Modification

Mike Stefanakis — Posted on The Triumph Experience
Wednesday January 30, 2019 11:42 AM

My engine is a fuel injected 1993 Toyota 22RE. I decided to use a stock in tank fuel pump utilizing as much of the factory assembly as possible. I modified it so that it would fit the Spit tank and could be serviced if necessary.

Toyota Fuell Pump Assy

Modified Fuel Pump Assy 1

Modified Fuel Pump Assy 2

Old Tank Mock Up 2

Member Comments on Journal Entry: Fuel Pump / Fuel Tank Modification ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Fuel Pump / Fuel Tank Modification

Mike Stefanakis — Posted on The Triumph Experience
Wednesday January 30, 2019 11:30 AM

When it came to the re assembly of the Spit the fuel tank was near the top of the list for evaluation. I was not expecting what I found but then again it's not too surprising. The photos tell the story.

Old Fuel Tank

Sending unit 1

Sending unit 2

Member Comments on Journal Entry: Fuel Pump / Fuel Tank Modification ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Engine Side Valances

Mike Stefanakis — Posted on The Triumph Experience
Sunday December 30, 2018 1:50 PM

The cardboard side valances that Triumph used in the Spitfire engine compartment were destined for early failure. I wanted to do as much as possible to keep road grime off of the engine.

The photos show starting with a cardboard templates to fit the the area to test for interference. Once that was done I used it as pattern to cut it out of 1/8" Baltic Birch plywood. Both sides were covered with aluminum flashing glued to the plywood with contact cement and trimmed with black edging.

I was able to attach them to original valance location on the firewall and added a bracket to the frame to attach them at the front.

Mike

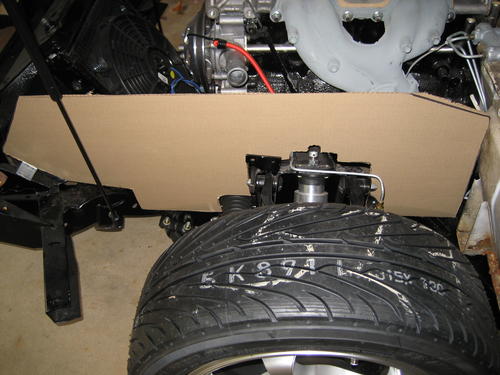

Cardboard Template

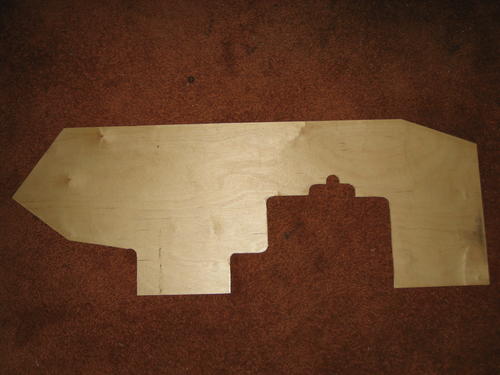

Baltic Birch

Aluminum Flashing

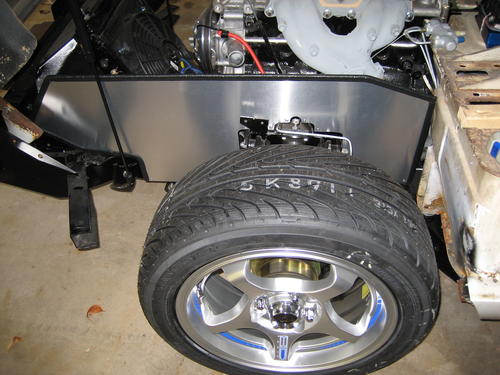

Valance Installed

Member Comments on Journal Entry: Engine Side Valances ↵

2018-12-30 14:46:03 # 53408

Comment by Chris Fisher

That's really nice, Mike. Did you use a template for the cardboard other than the car itself. In other words, did you just cut the cardboard to fit the car, or did you have your originals and traced them?

2018-12-30 14:54:17 # 53409

Comment by Mike Stefanakis

Chris,The cardboard templates were cut to fit. My Spit has a Toyota engine conversion in it so that the side valances were made to accommodate the available area around it.

2018-12-31 17:47:16 # 53451

Comment by Chris Fisher

Ah, gotcha. Thanks, Mike.

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Hard Top Headliner Install

Mike Stefanakis — Posted on The Triumph Experience
Friday December 28, 2018 5:39 PM

Here are some photos, not in any particular order, showing the headliner installation of my hard top along with the rear and side windows.

Spring clamps are used to maintain pressure while cement dries.

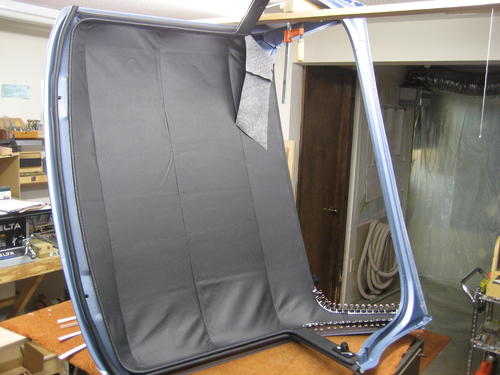

Headliner partially installed.

003

Hard Top 005

Member Comments on Journal Entry: Hard Top Headliner Install ↵

2018-12-30 06:05:28 # 53397

Comment by Eric O

Mike, awesome pictures! It looks great. I will be doing my hardtop headliner soon. I will use these for reference while I do mine. I see I need to find my bag of clips before I start

. Thank you, Eric

2018-12-30 16:49:20 # 53425

Comment by Joe Carter

Very nice. I like the black liner.
