1964 MGB V8

Chuck Royer — Posted on The MG Experience
Saturday December 28, 2013 8:53 AM

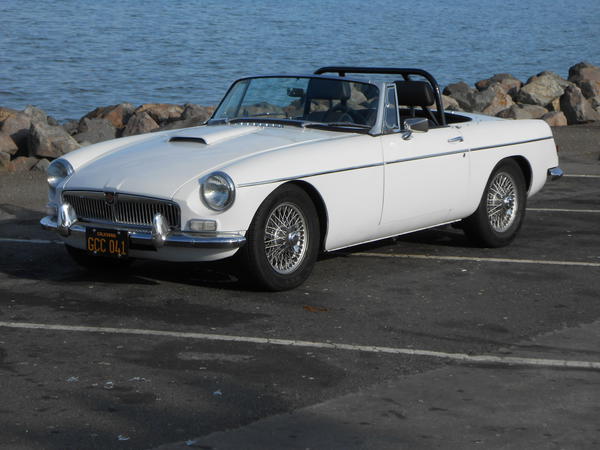

I bought my 1964 MGB a couple of years ago, it had a 350 SBC-T-10 4-speed combo, otherwise stock, recent OK restoration (nice driver). Due to weaknesses in the basic MGB structure I am upgrading everything underneath. So far I have a CM subframe,CCE triangulated 4-link with coilovers, narrowed 8.8 Ford rearend with 93 Cobra discs, rollbar welded to rocker boxes and subframe, and many small safety and performance upgrades. Was hit and run 10-2013 (need a complete front clip and RR fender), will upgrade everything, in chassis shop now. Can be seen on BangShift.com-readers rides-page 8. GREAT LITTLE CAR

DSCN0129

Member Comments on Journal Entry: 1964 MGB V8 ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

The Road Back

Chuck Royer — Posted on The MG Experience
Wednesday January 15, 2014 11:08 PM

1-10-2014---in chassis shop, not as bad as thought, mostly cosmetic, all front sheet metal and everything in front of engine needs to be replaced, going with new aluminum radiator, wiring harness, exhaust,front suspension(unsure if custom or rebuilt MG

. Have parts car, should be back on road 3or4 months less paint, that comes after it is all worked out.

not my favorite picture

Member Comments on Journal Entry: The Road Back ↵

2014-01-16 22:43:00 # 13670

Comment by JAMES H. KNAUP

I, TOO NEED A NEW ALUMINIUM RADIATOR FOR MY '73 MGB....
ANY RECOMMENDATIONS??
CHEERS, JIM KNAUP, HILLSBORO BEACH, FL

2014-01-17 03:15:51 # 13672

Comment by Chuck Royer

a 65 or 66 Mustang radiator almost bolts in, most companies have choice
of inlet-outlet location, I am probably going with an ECP radiator with
shroud and electric fan ($425 complete), some friends have used their
products-service a little slow-product good

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Just More Money

Chuck Royer — Posted on The MG Experience
Saturday February 15, 2014 3:54 AM

Looks like going with custom a-arm coilover set-up-maybe 5-lug conversion-will miss wire wheels. Engine out, some freshening up coming,(clutch,etc.) Getting pretty expensive, not sure how elaborate I can afford, work progresses.

Member Comments on Journal Entry: Just More Money ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

More Prgress

Chuck Royer — Posted on The MG Experience
Saturday March 15, 2014 7:25 AM

am going with full frame, custom A-arms, coilovers, 5-lug hubs and wheels, should be a driver in a couple of months-probably no paint this year

Member Comments on Journal Entry: More Prgress ↵

No comments have been posted yet...

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

Excellent Progress

Chuck Royer — Posted on The MG Experience
Wednesday April 9, 2014 9:14 PM

The square tube .125 wall frame rails are much stronger than the original front clip--the original front subframe was incredibly thin, surprised it would even hold the SBC, 11 inch discs going on front, CAChassisworks tubular A-arms and billet spindles, custom radiator (still shopping),complete rewire.Am tying the whole frame together with rear tubular subframe to make it a fully braced full frame car, back on road (less paint) sometime in June, cannot wait

Member Comments on Journal Entry: Excellent Progress ↵

Rated 9 out of 10 based on 1 ratings

2015-07-19 16:57:37 # 27617

Comment by Roger N. Tanner

Rating: 9/10

Why did you change the front suspension on your MGB when you changed to the modern engine?Roger N. Tanner, Professional Engineer, RetiredOxnard, CA USAroger.n.tanner@gmail.com

Want to leave a comment or ask the owner a question?
Sign in or register a new account — it's free

New Pictures

Chuck Royer — Posted on The MG Experience
Saturday May 3, 2014 7:14 AM

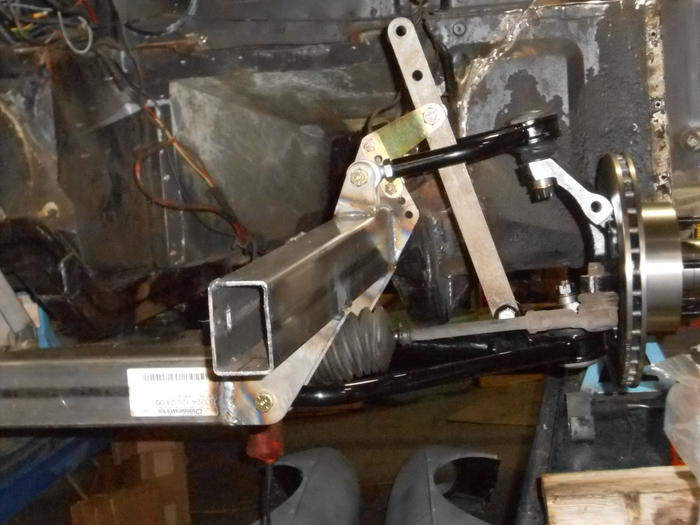

frame and front suspension

DSCN0255

DSCN0256

DSCN0257
